Analog Output Expansion

Adding functions for controllers

  • 4 Channel Analog Output Expansion
  • 4 – 20mA / 0 – 20mA / 0 – 10V Modes
  • 12bit Analog Values can be written into a slave device using I2C
  • I2C Expansion for Analog Outputs

Daisy-chain up-to 8 expansion modules

daisy_chain

Description

  • 4 Channel Analog Output Expansion
Supported Analog Output Types
  • 0 – 10V DC Output
  • 4 – 20mA DC Output
  • 0 – 20mA DC Output

Features

Expansion Modules for PLCs

All 3 Output Variations in one product as a 4 Channel Analog Output Expansion

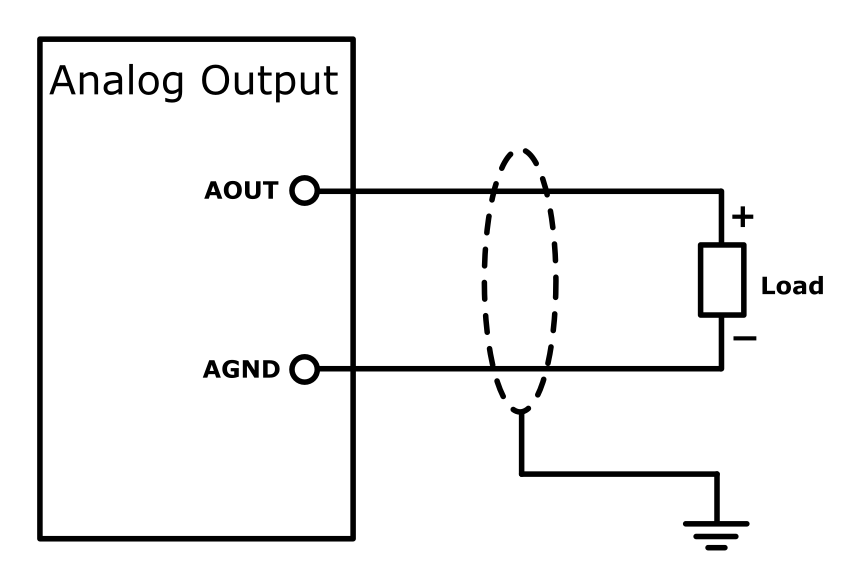

0 - 10V DC Output

4 X

0 – 10V DC Output ESP32 based PLC especially for NORVI controllers.

4 - 20mA DC Output

4 X

4 – 20mA Analog Output ESP32 based PLC especially for NORVI controllers.

0 - 20mA DC Output

4 X

0 – 20mA DC Output for ESP32 based PLC especially for NORVI controllers.

Applications

  • Industrial Automation
  • Industrial IoT
  • Machinery Control
  • Motor Speed Controlling

Downloads
